묘사:

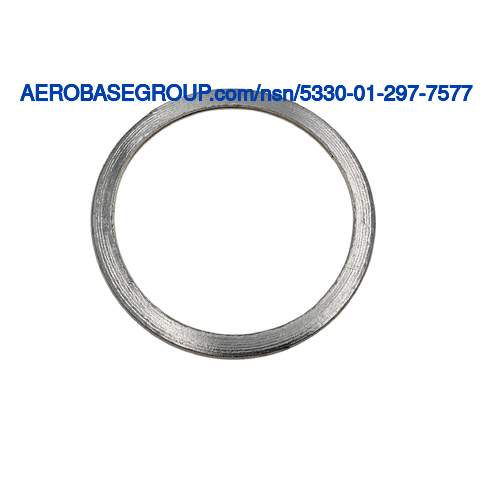

Spiral Wound Gasket
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Metal winding w/ soft filler
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
Between 3.094 inches and 3.156 inches
MRC:
The length of a straight line which passes through the center of an aperture,and terminates at the circumference.ABVL
Aperture Diameter:
Between 2.609 inches and 2.641 inches
MRC:
A measurement of the smallest dimension of a cross section,in distinction from length or width.ADVM
Cross-sectional Thickness:
Between 0.061 inches and 0.068 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
W/s: aircraft, (ac-130h, mc-130h, ec-130e, hc-130); aircraft, hercules c-130
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Chlorite spiral wound filler and steel comp 304 spiral wound filler
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Circular
