부품 정보
Critical form, fit, function
TXT
묘사:

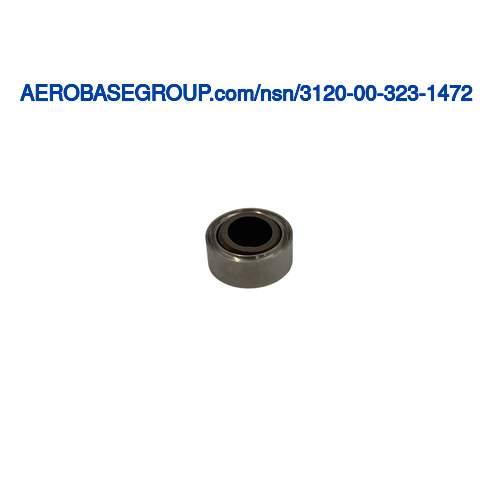

Self-aligning Plain Bearing
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.4995 inches and 0.5000 inches
Outer Member Outside Diameter:
Between 0.9995 inches and 1.0000 inches
Outer Member Width:
Between 0.3850 inches and 0.3900 inches
Inner Member Width:
Between 0.4950 inches and 0.5000 inches
MRC:
The limiting radial load which the item can carry at rest without permanent deformation of the stressed surface or the danger of fracture.AGKP
Static Radial Load Rating:
20400 pounds
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
28.0 rockwell c outer race member and 36.0 rockwell c outer race member
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
37.0 rockwell c inner member
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
28.0 rockwell c and 36.0 rockwell c outer race member
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Feat
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 172 inner member or copper alloy 173 inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 630 outer race member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 172 or copper alloy 173 inner member
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Without insert or liner with staking groove
