부품 번호 PWA2812

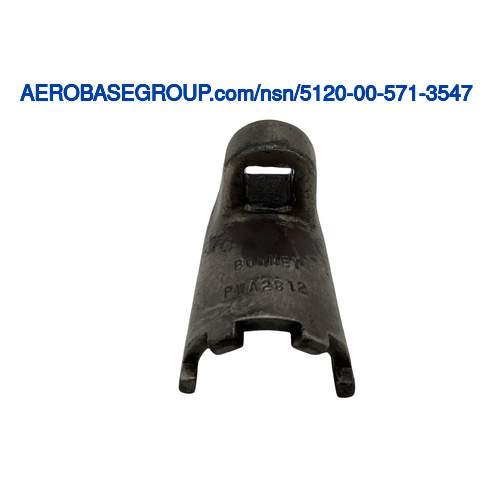

Spanner Wrench

가격 및 가용성

이 NSN의 현재 가격 및 가용성에 대해 이 양식을 제출하십시오.
부품 번호:
양:
이메일 주소:
전화:
참조:
회사:
이름:

우리는 귀하의 정보를 누구에게도 공유하거나 판매하지 않습니다.
사생활 | 용어

All major credit cards accepted as well as gov. p-cards
부품 번호
비무장화
수명
UOM
NIIN
부품 번호:
pwa2812
비무장화:
No
수명:
측정 단위:
NIIN:
005713547

부품 정보
45.0 degrees angle between lugs

NSN
국가 주식 번호:
5120-00-571-3547 5120005713547
TXT
묘사:
Spanner Wrench
INC
INC
아이템 이름 코드:
03476
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.750 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
1.310 inches
MRC:
The length of a straight line which passes through the center of an opening,and terminates at the circumference.AGNJ
Opening Diameter:
1.030 inches
MRC:
A measurement taken at right angles to the length of the lug,in distinction from thickness.AHMM
Lug Width:
Between 0.230 inches and 0.235 inches
MRC:
None.AHMN
Lug Thickness:
0.120 inches
MRC:
A numeric value which indicates the size of the drive surface.ATNC
Drive Surface Size:
0.380 inches single end and 0.385 inches single end
MRC:
The physical configuration of the drive end.CTCT
Drive End Shape:
Square single end internal
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 4130
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-t-6736 military specification single material response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Face lug
