묘사:

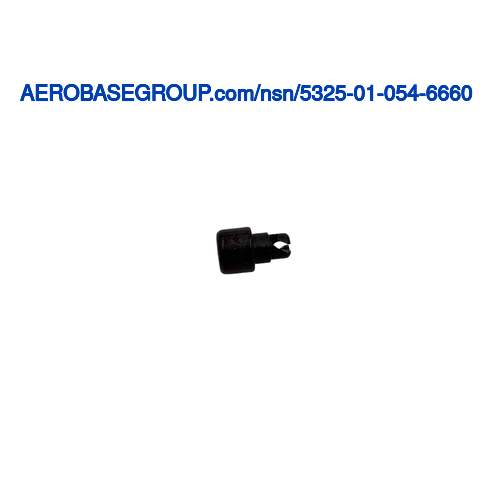

Turnlock Fastener Stud Assembly
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the circumference.ABMZ
Diameter:
Between 0.373 inches and 0.377 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the turnlock stud head.AGRD
Turnlock Stud Head Style:
Flat fillister
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the stud assembly.AGRE
Stud Assembly Style:
Stud assembly
Eyelet Outside Diameter:
Between 0.253 inches and 0.257 inches
MRC:
The length of a straight line which passes through the center of a stud,and terminates at the circumference.AGRJ
Stud Diameter:
Between 0.212 inches and 0.215 inches
Eyelet Length:
Between 0.135 inches and 0.140 inches
MRC:
The thickness of the material to be accommodated.AGSM
Material Accommodated Thickness:
0.125 inches
MRC:
Indicates the type of drive for turning,rotating,or positioning the mechanism.AKCV
Drive Type:
Slotted
Stud Head Height:
0.285 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1118
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 2, cl 2 federal specification all treatment responses
