묘사:

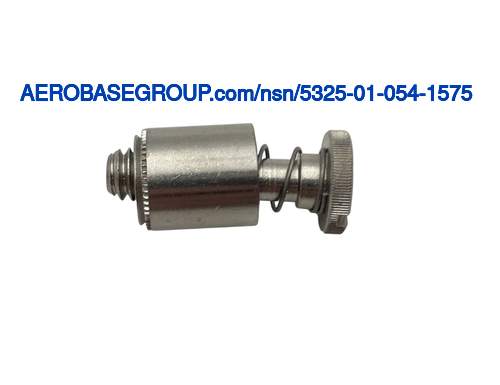

Turnlock Fastener Stud Assembly
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the circumference.ABMZ
Diameter:
0.469 inches
MRC:
Indicates the type of device used to fasten the item.ADQB
Securing Device Type:
Spring
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the turnlock stud head.AGRD
Turnlock Stud Head Style:
Knurled
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the stud assembly.AGRE
Stud Assembly Style:
Stud assembly
Distance From Engaging Member To Largest Bearing Surface Of Head:
1.062 inches
Eyelet Outside Diameter:
0.469 inches
Eyelet Length:
0.529 inches
MRC:
The thickness of the material to be accommodated.AGSM
Material Accommodated Thickness:
0.060 inches
MRC:
Indicates the type of drive for turning,rotating,or positioning the mechanism.AKCV
Drive Type:
Knurled and slotted
MRC:
Designates the thread diameter,series/type,and number of threads per measurement scale of the stud.ALBJ
Stud Thread Size And Series/type Designator:
0.250-20 unc
Stud Head Height:
Between 0.095 inches and 0.100 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 type 1 federal specification single treatment response
