묘사:

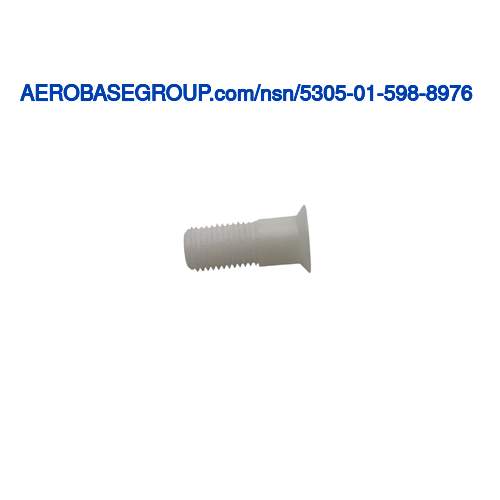

Socket Head Cap Screw
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
0.578 inches
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 0.938 inches and 0.968 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flat countersunk
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
Between 0.524 inches and 0.531 inches
MRC:
The length of a straight line which passes through the center of the smallest cross section of a spline,and terminates at the circumference.AAUH
Spline Minor Diameter:
Between 0.157 inches and 0.160 inches
MRC:
The length of a straight line which passes through the center of the largest cross section of a spline,and terminates at the circumference.AAUJ
Spline Major Diameter:
Between 0.219 inches and 0.222 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the internal drive.ABQZ
Internal Drive Style:
Torx
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Fighter aircraft-first (f18 e/f)
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
0.375 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
24.0
MRC:
A characteristic of light that can be specified in terms of luminance,dominant wavelength,and purity.HUES
Color:
Natural
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic acetal
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm d6778 group 01, class 3, grade 2 assn standard single material response
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf
