부품 번호 NAS1330C3-216

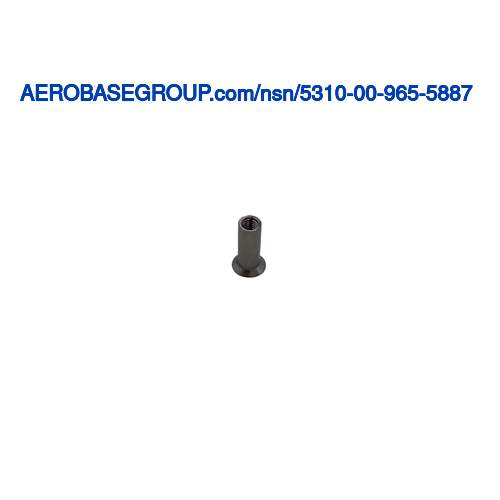

Blind Rivet Plain Nut

가격 및 가용성

이 NSN의 현재 가격 및 가용성에 대해 이 양식을 제출하십시오.
부품 번호:
양:
이메일 주소:
전화:
참조:
회사:
이름:

우리는 귀하의 정보를 누구에게도 공유하거나 판매하지 않습니다.
사생활 | 용어

All major credit cards accepted as well as gov. p-cards

이 제품의 과거 가격은 3 and 4.05 USD. 수량, 가용성, 상태, 리드 타임 및 품목 중단 가능성에 따라 최신 견적을 제공할 때까지 가격을 보장할 수 없습니다.

부품 번호
비무장화
수명
UOM
NIIN
부품 번호:
nas1330c3-216
비무장화:
No
수명:
N/A
측정 단위:
100 EA
NIIN:
009655887
NSN
국가 주식 번호:
5310-00-965-5887 5310009655887
TXT
묘사:
Blind Rivet Plain Nut
INC
INC
아이템 이름 코드:
01873
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flat countersunk
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
0.391 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Blind rivet w/smooth round shank
MRC:
None.ACTD
Nut Diameter:
0.250 inches
MRC:
A measurement of the longest dimension of the nut,in distinction from width.ACVN
Nut Length:
Between 0.672 inches and 0.702 inches
MRC:
The area between the maximum and minimum thickness of material in which a specific blind rivet nut can be properly installed.ADEY
Err Default:
+0.166/+0.216 inches
MRC:
Indicates the type of end included on the shank.ADFN
Shank End Type:
Open
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unf
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
32
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.190 inches
MRC:
The included angle of the head countersink.CTPW
Head Countersink Angle:
100.00 degrees
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 430
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-w-423, form 1 federal specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
