묘사:

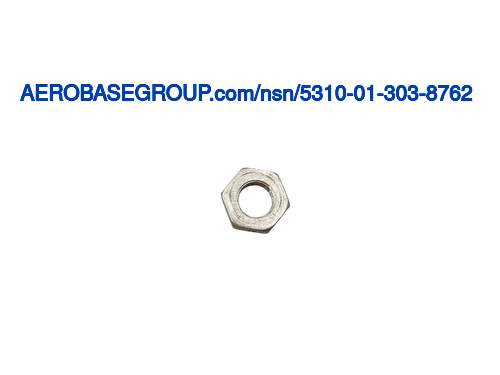

Hexagon Plain Nut
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Hexagon
Nut Height:
Between 3.7 millimeters and 4.0 millimeters
MRC:
The length of a straight line which passes through the center of a drilled hole,and terminates at the circumference.AGGP
Drilled Hole Diameter:
Between 1.40 millimeters and 1.54 millimeters
MRC:
Indicates the type and number of holes provided.ALET
Hole Type And Quantity:
2 drilled
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 12.73 millimeters and 13.00 millimeters
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Mj
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
8.0 millimeters
MRC:
A measurement of distance between corresponding points on two adjacent threads measured parallel to the thread axis,expressed in millimeters.CQQR
Thread Pitch In Millimeters:
1.00
MRC:
The style designation that most nearly corresponds to the appearance of the hole configuration.CRHC
Hole Configuration Style:
Configuration b
MRC:
Indicates the type of bearing surface.CRTM
Bearing Surface Type:
Washer faced
MRC:
A numeric-alpha designator indicating established pitch and crest diameter tolerance position and grade.CTTC
Thread Tolerance Class:
4h5h internal
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 302 or steel comp 304 or steel comp 305 or steel comp 309 or steel comp 310 or steel comp 316 or steel comp 316l or steel comp 317 or steel comp 321 or steel comp 347 or steel comp 304l
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-s-763 federal specification all material responses
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response
