부품 정보
Mechanism permits selection of red and white flood and spot lights
TXT
묘사:

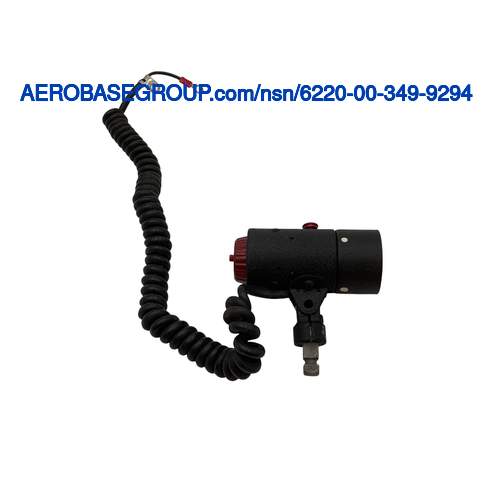

Aircraft Cockpit Light
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
4.500 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
2.000 inches
MRC:
Indicates the type of lamp base the item will accommodate.AEUJ
Lamp Base Type Accommodated:
Miniature bayonet
MRC:
The hue or tint of the lens.AEXD
Lens Color:
Colorless
MRC:
The ability of the lens to transmit light and allow visual perception.AEXK
Lens Transparency:
Transparent
MRC:
The means provided for electrical connection of the item to a power source.AEYB
Wiring Provision Method:
Cable
MRC:
The measurement of each wiring provision of an item taken from the body to the ends of the wiring provision,including any terminations.AHHZ
Wiring Provision Length:
50.0 inches single provision
MRC:
The voltage rating at which the item is designed to operate,expressed in volts.ASXH
Voltage Rating In Volts:
28.0 dc
MRC:
The means of attaching the item.AXGY
Mounting Method:
Post
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Dimming device and switch and adjustable light beam spread
MRC:
Indicates the type and number of lamps that the item can accommodate.CRHX
Lamp Type Accommodated And Quantity:
1 incandescent
MRC:
Indicates the type and number of lenses included in the item.CRLP
Lens Type And Quantity:
1 flat, round
MRC:
The condition of the lens with respect to the texture of the surface.CTXJ
Lens Surface Condition:
Smooth face
MRC:
The condition of the lens with respect to the texture of the surface.CTXJ
Lens Surface Condition:
Smooth back
MRC:
The name and number of those parts furnished with the item of supply that have not been specified elsewhere.TMQY
Furnished Items And Quantity:
1 lamp
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
2 wire lead
