MRC:
The minimum and maximum pitch diameter limits of a straight screw thread.AAJE
Thread Pitch Diameters:
+1.7309/+1.7354 inches
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
Drive Point Depth:
Between 0.086 inches and 0.096 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA

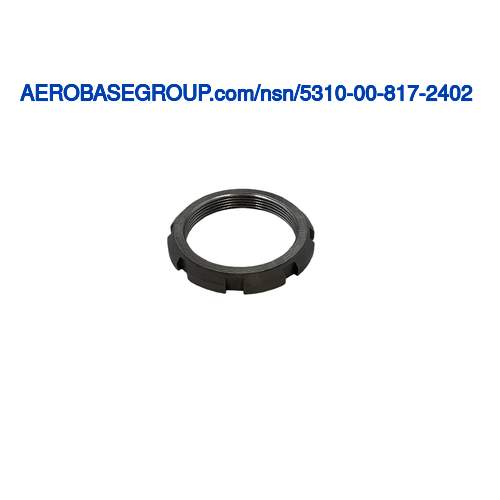

Nut Style:
Round
Nut Diameter:
Between 2.297 inches and 2.317 inches
MRC:
A measurement between the opposite flat surfaces of the nut,in distinction from length or width.ADBG
Nut Thickness:
0.312 inches
Drive Point Width:
0.250 inches
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Uns
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
18
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
Between 26.0 rockwell c and 32.0 rockwell c
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
1.766 inches
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
88.0 degrees second end and 92.0 degrees second end
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
88.0 degrees first end and 92.0 degrees first end
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 4140
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 6381 assn standard single material response or ams6382 assn standard single material response
