A tab is formed on the outside corner of the 90 degree elbow with a hole for a .020 diameter safety wire to be attached
TXT
묘사:

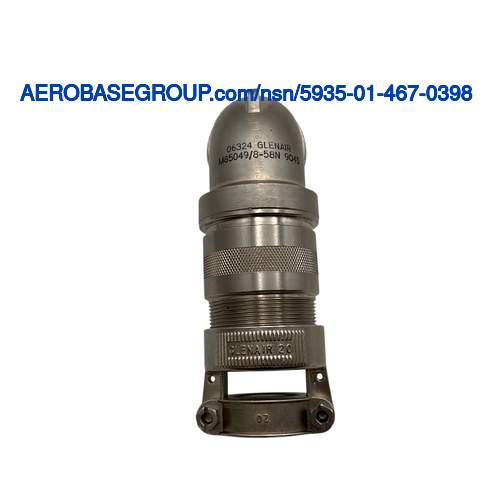

Electrical Connector Backshell
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2a
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 2.073 inches and 2.113 inches
MRC:
The angle the end/s/ or legs deviate from the centerline of the inlet end,expressed in degrees.ADMW
Body Angle In Deg:
90.0
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
An/spn-46v3, nimitz class cvn
MRC:
The length of a straight line which passes through the center of the cable opening,and terminates at the circumference.AGTW
Cable Opening Diameter:
Between 0.875 inches and 1.250 inches
Distance From Centerline To Connector End:
Between 2.281 inches and 2.531 inches
Distance From Centerline To Cable End:
Between 4.718 inches and 4.842 inches
MRC:
The number of openings designed to accommodate a cable.AKRD
Cable Opening Quantity:
1
MRC:
Indicates the type of seal included with the item.AKRF
Seal Type:
Preformed packing and grommet
MRC:
Indicates the type and number of facilities by which the item is mounted.AXHR
Mounting Facility Type And Quantity:
1 threaded coupling
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
18
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
1.750 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Angle type w/clamp
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Uns
