묘사:

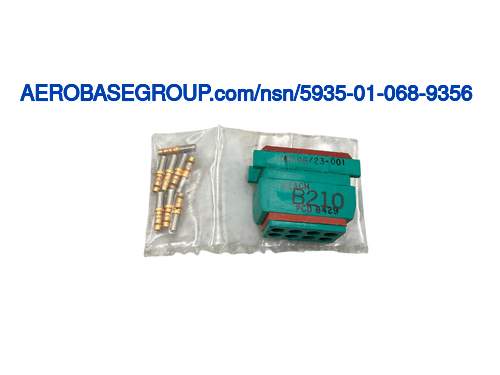

Plug-in Electronic Compon Socket
MRC:
The basic material of which the body is fabricated.AAFZ
Body Material:
Plastic
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Top mount
MRC:
The process used in manufacturing the item.AARN
Fabrication Method:
Molded
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
0.945 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
0.765 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
0.390 inches
Body Mounting Hole Accommodation Length:
0.830 inches
Body Mounting Hole Accommodation Width:
0.390 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the mounting hole(s).AEVB
Mounting Hole Style:
Rectangular
MRC:
The name of the equipment the item is specifically designed to accommodate.AFJE
Specific Equipment Accommodated:
Relay
MRC:
The maximum current which the contact may continuously carry without degradation or destruction,expressed in amperes.AFRC
Contact Maximum Current Rating In Amps:
7.5
MRC:
The element,compound,or mixture of which the contact/s/ is fabricated,excluding any surface treatment.AFRG
Contact Material:
Copper alloy
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off. plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects the contact surface.AFRH
Contact Surface Treatment:
Any acceptable
MRC:
The number of contacts accommodated by the item.AFRL
Accommodated Contact Quantity:
8
MRC:
Indicates the type of polarization used to prevent mismating.AKWN
Polarization Type:
Off center hole
MRC:
The means of attaching the item.AXGY
Mounting Method:
Press fit
MRC:
Indicates the type of mounting for which the item is designed.BCNX
Mounting Type For Which Designed:
Chassis
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the contact positions.CRPY
Contact Position Arrangement Style:
Dual in line
MRC:
The specification,standard,drawing,or similar instrument that specifies environmental and performance requirements or test conditions under which an item is tested and establishes acceptable limits within which the item must conform identified by an alphabetic and/or numeric reference number. includes the commercial and government entity (cage) code of the entity controlling the instrument.TEST
Test Data Document:
81349-mil-r-6106 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
8 crimp
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81349--6106/23-001 government specification
