부품 정보

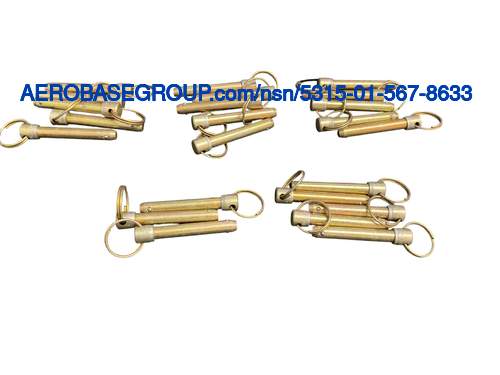

Pin, quick-release, detent
TXT
묘사:
Quick Release Pin
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
Between 0.485 inches and 0.515 inches
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
0.430 inches
Ring Handle Diameter:
Between 1.000 inches and 1.187 inches
MRC:
The number of detents included in the item.ABRM
Detent Quantity:
2
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
2320-01-549-8565 truck, cargo
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 2.000 inches and 2.020 inches
MRC:
Indicates the type of actuation provided.APCM
Actuation Type:
Pull
MRC:
The minimum load,applied perpendicularly to the longitudinal axis of an item,at which point the item will fracture when subjected to the standard shear test method.CQSX
Shear Strength:
19600 double pound
Shoulder To Head End Distance:
Between 0.380 inches and 0.560 inches
MRC:
Indicates the type of device that is attached to the pin.CTDJ
Pin Attachment Type:
Ring
Detent To Tapered End Distance:
Between 0.330 inches and 0.390 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel and stainless steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and passivate
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Ring handle
