Cage: straight conduit fitting - conduit size b
TXT
묘사:

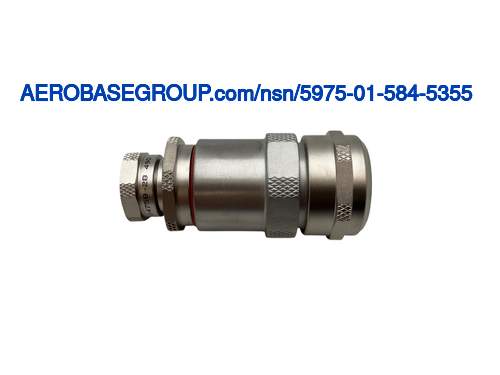

Electrical Conduit Adapter
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2b single end
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
0.495 inches second end
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
1.000 inches first end
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
3.000 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
1.460 inches first end
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
1.130 inches second end
MRC:
Indicates the type of conduit which the item is designed to accommodate.AELS
Conduit Type Accommodated:
Any acceptable single end
MRC:
Indicates the type of end.APTD
End Type:
Gland nut w/internal thread first end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.688 inches single end
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Environmentally sealed fitting with rotatable couplings used with m24758-b size conduit used to terminate m24758-b flexible shielding conuit and to provide standard thread for attaching m24758-9 through m24758-25 conduit size b adapter fittings; qualified to mil-prf-24758 (sh)
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel and rubber synthetic
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Nickel
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Unthreaded socket to external thread
MRC:
Characteristics or qualities of an item,not covered in any other requirement,which are considered essential information for one or more functions excluding nsn assignment.SUPP
Supplementary Features:
Material: adapter, nut, sleeve and ring: 316l stainless steel with electro-less nickel plating and matte finish; o-ring and gland: silicone rubber
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unef single end
