부품 정보
Six 0.344 in. Diameter mtg holdes equally spaced on a 5.000 in. Diameter bolt circle
TXT
묘사:

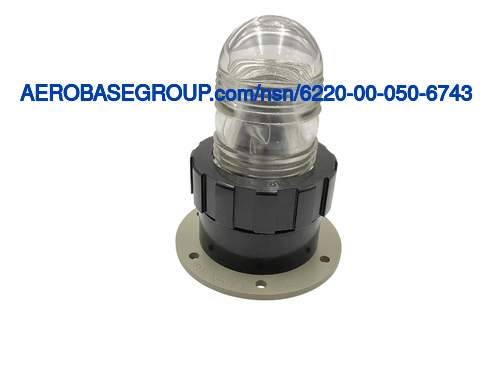

Marine Navigational Light
MRC:
The specific commercial rating which classes the item as to what degree the item will withstand environmental elements and/or hazardous locations.ABFE
Hazardous Locations/environmental Protection:
Watertight
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
8.406 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
5.875 inches
MRC:
Indicates the type of lamp base the item will accommodate.AEUJ
Lamp Base Type Accommodated:
Medium screw
MRC:
The hue or tint of the lens.AEXD
Lens Color:
Colorless
MRC:
The ability of the lens to transmit light and allow visual perception.AEXK
Lens Transparency:
Transparent
MRC:
The voltage rating at which the item is designed to operate,expressed in volts.ASXH
Voltage Rating In Volts:
115.0 ac
MRC:
The means of attaching the item.AXGY
Mounting Method:
Flange
MRC:
Indicates the type and number of lamps that the item can accommodate.CRHX
Lamp Type Accommodated And Quantity:
1 incandescent
MRC:
Indicates the type and number of lenses included in the item.CRLP
Lens Type And Quantity:
1 stovepipe, flanged
MRC:
The nominal degrees of arc the emitted light is visible.CSMG
Visibility Arc In Deg:
360.0 horizontal
MRC:
The condition of the lens with respect to the texture of the surface.CTXJ
Lens Surface Condition:
Smooth face
MRC:
The condition of the lens with respect to the texture of the surface.CTXJ
Lens Surface Condition:
Smooth back
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Glass lens
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-m-14 military specification single material response body
MRC:
The physical configuration of the item.SHPE
Shape:
Tapered
MRC:
The name and number of those parts furnished with the item of supply that have not been specified elsewhere.TMQY
Furnished Items And Quantity:
1 lamp
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
1 wire lead
