묘사:

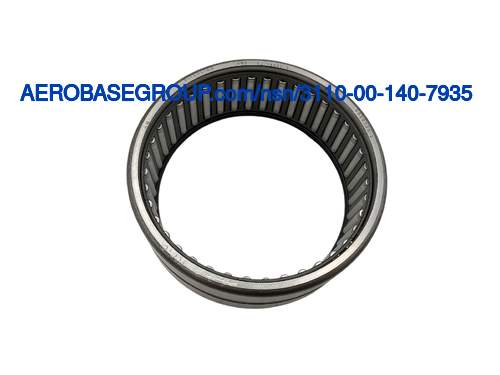

Needle Roller Bearing
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 1.7450 inches and 1.7500 inches
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 4.2515 inches and 4.2524 inches
MRC:
The overall length of a straight line which passes through the center of an item,and terminates at the outside circumference.ADGA
Overall Outside Diameter:
Between 4.9990 inches and 5.0000 inches
MRC:
The number of seals included on the item.AGYJ
Seal Quantity:
1
MRC:
Indicates the type of seal provided with the bearing.AGYW
Bearing Seal Type:
Lips turned outwardly
MRC:
Indicates the type of alignment utilized whereby the item will adjust axially for misalignment.AGZA
Alignment Type:
Rigid
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Non-separable, with roller retainer, hardened and ground
