부품 정보

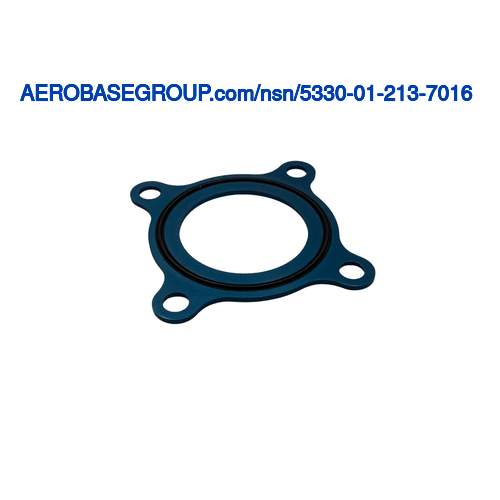

Aluminum surfaces anodized per mil-a-8625, type 2, color blue
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Metal and synthetic rubber
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.318 inches and 0.338 inches
MRC:
The length of a straight line which passes through the center of a bolt circle,and terminates at the circumference.ABKG
Bolt Circle Diameter:
Between 3.345 inches and 3.373 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 3.949 inches and 4.017 inches
MRC:
The length of a straight line which passes through the center of an aperture,and terminates at the circumference.ABVL
Aperture Diameter:
Between 1.831 inches and 1.851 inches
Outside Corner Radius:
Between 0.302 inches and 0.322 inches
Side Radius From Gasket Center:
Between 1.370 inches and 1.380 inches
MRC:
A measurement of the smallest dimension of a cross section,in distinction from length or width.ADVM
Cross-sectional Thickness:
Between 0.106 inches and 0.140 inches
Gage Ring Thickness:
Between 0.070 inches and 0.090 inches
MRC:
The number of bolt holes provided on the item.AECS
Bolt Hole Quantity:
4
MRC:
The percentage the item will stretch.ANYN
Elongation Percentage:
125
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 6061 and rubber fluorocarbon class fpm
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 4027 assn standard 1st material response and mil-r-83248, type 1, cl 1 military specification 2nd material response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Non-circular
