묘사:

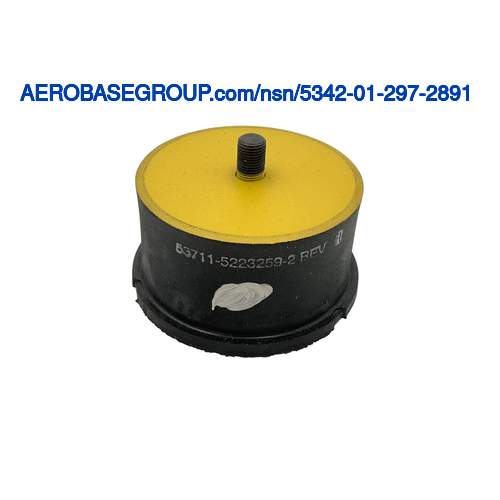

Weapon System Resilient Mount
MRC:
Designates the thread diameter and number of threads per specific measurement scale.ABUJ
Thread Size:
0.500-20 all threaded portions
MRC:
The length of a straight line which passes through the center of the largest end of an item,and terminates at the outside circumference.ADMZ
Major Outside Diameter:
Between 3.750 inches and 5.000 inches
MRC:
A measurement of the longest dimension of the stud,in distinction from width.AGXF
Stud Length:
0.620 inches all threaded stud and 0.750 inches all threaded stud
MRC:
The maximum rated load the item is designed to accommodate.AYXK
Maximum Load Rating:
15000.0 pounds
MRC:
A measurement from the bottom to the top of an object,in distinction from depth.HGTH
Height:
2.250 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel flange
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Tt-p-1757 federal specification single treatment response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Round w/one threaded stud
