부품 정보

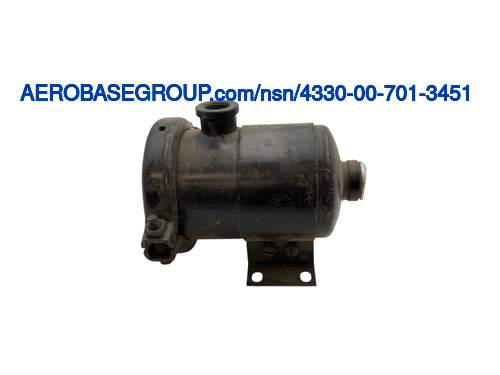

Clamp-on cover; bracket holes enlongated
MRC:
Indicates the type of mount utilized to support the item.AAXX
Mounting Type:
Bracket w/drilled hole side
MRC:
The length of a straight line which passes through the center of a mounting hole,and terminates at the circumference.ABTB
Mounting Hole Diameter:
0.406 inches
MRC:
The number of mounting holes provided.ABTJ
Mounting Hole Quantity:
4
MRC:
The length of a straight line which passes through the center of the body,and terminates at the outside circumference.ADAR
Body Outside Diameter:
4.500 inches
MRC:
A measurement from the bottom to the top of the body,in distinction from depth.ADAU
Body Height:
8.438 inches
MRC:
The size of the smallest particle which the element is capable of removing from the fluid which passes through the filtering material.ADNH
Filtration Rating In Microns:
10.0
MRC:
The distance between the centerline of the mounting holes.AFQM
Distance Between Mounting Hole Centers:
1.937 inches and 3.190 inches
MRC:
Indicates the design type of the item.APGF
Design Type:
Reusable
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
275.0 degrees fahrenheit
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Differential pressure relief valve and drain plug
MRC:
The number of brackets provided.CBQD
Bracket Quantity:
1
MRC:
The number of filtering elements provided.CCZM
Filtering Element Quantity:
1
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
400.0 pounds per square inch
MRC:
An indication of the structure or characteristic of the filtering media.CRXW
Filtering Media Design:
Pleated single filtering media response
MRC:
Indicates the type of connection on the first intake.CRXZ
First Intake Connection Type:
Threaded internal pipe side
MRC:
Indicates the first discharge connection relationship to an intake connection.CSJR
First Discharge Connection Relationship To Intake Connection:
Not identical
MRC:
Indicates the type of connection on the first discharge.CSKS
First Discharge Connection Type:
Threaded internal pipe bottom
MRC:
A designation distinguishing one group of thread diameter-pitch combination from another by the number of threads per measurement scale for a specific diameter.CTDY
First Intake Thread Series Designator:
Nptf
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.CTFF
First Discharge Thread Series Designator:
Nptf
MRC:
A designation that is used for the purpose of general identification of the thread.CTGK
First Intake Thread Size:
0.750 inches
MRC:
A designation that is used for the purpose of general identification of the thread.CTLG
First Discharge Thread Size:
0.750 inches
MRC:
The direction of the thread when viewed axially.a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.CXPF
First Intake Thread Direction:
Right-hand
MRC:
The direction of the thread when viewed axially.a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.CXYG
First Discharge Thread Direction:
Right-hand
MRC:
The filtering system for which the item is designed to be used.CXZX
Filtering System For Which Designed:
Full flow
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Paper filtering medium
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Metal container/cartridge
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel body
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Air or fuel/oil, hydrocarbon or gas
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Ell type (hydraulic)
