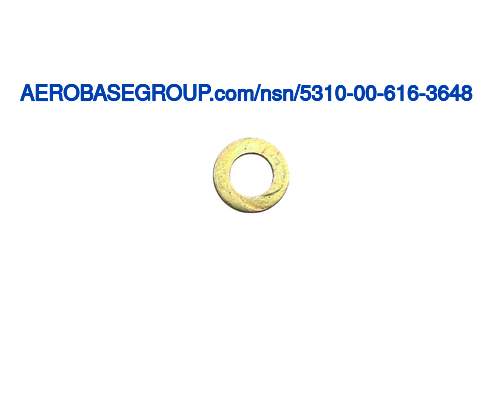

부품 번호 EE-5214

Flat Washer

가격 및 가용성

이 NSN의 현재 가격 및 가용성에 대해 이 양식을 제출하십시오.
부품 번호:
양:
이메일 주소:
전화:
참조:
회사:
이름:

우리는 귀하의 정보를 누구에게도 공유하거나 판매하지 않습니다.
사생활 | 용어

All major credit cards accepted as well as gov. p-cards

이 제품의 과거 가격은 3.06 and 4.131 USD. 수량, 가용성, 상태, 리드 타임 및 품목 중단 가능성에 따라 최신 견적을 제공할 때까지 가격을 보장할 수 없습니다.

부품 번호
비무장화
수명
UOM
NIIN
부품 번호:
ee-5214
비무장화:
No
수명:
N/A
측정 단위:
1 HD
NIIN:
006163648
NSN
국가 주식 번호:
5310-00-616-3648 5310006163648
TXT
묘사:
Flat Washer
INC
INC
아이템 이름 코드:
13393
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Rectangular
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.120 inches and 0.130 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the peripheral shape of the item.ABMW
Edge Shape:
Round
MRC:
The style designation indicating the configuration that most nearly corresponds to the shape of the center hole.ABMX
Center Hole Shape:
1 round
MRC:
The style designation indicating the configuration that most nearly corresponds to the shape of the center hole.ABMX
Center Hole Shape:
Round
MRC:
A measurement of the smallest dimension of an item,in distinction from length or width.ABNM
Thickness:
0.016 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
Between 0.204 inches and 0.224 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Support equipment, b-52 aircraft; test set electronic sys, direct support (dsests); missile, air-to-air, sparrow (aim-7); support equipment, b-1 aircraft; communications systems, an/wrr-7; communications terminal, satellite an/gsc-3 (v)1; missile, all-weather anti-ship, harpoon (agm-84); aircraft, (ac-130h, mc-130h, ec-130e, hc130); missile, advance medium range air-to-air (amraam)/aim120a; missile, air-to-air, phoenix (aim-54)
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-s-698 federal specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 2, cl 2 federal specification single treatment response
