부품 정보

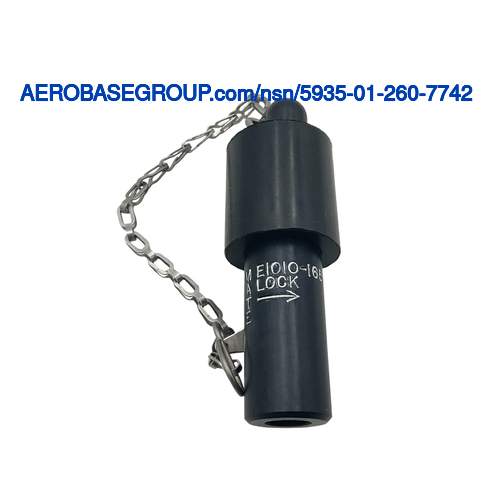

Item is furnished with a cover
MRC:
The feature consisting of sleeves,covering,caps,mounting bushings and the like,used to electrically insulate an item.AALV
Electrical Insulation Feature:
Insulated completely
MRC:
The application of color or a series of colors for the expressed purpose of identifying the specific functional design and/or the system application of an item.AAPC
Identification Code Color:
Natural
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Straight handle
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 3.437 inches and 3.693 inches
MRC:
A measurement of the longest dimension of the body,in distinction from width.ADAQ
Body Length:
Between 2.500 inches and 2.630 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
Between 0.980 inches and 1.020 inches
MRC:
The length of a straight line which passes through the center of the cable entrance,and terminates at the circumference.AFQJ
Cable Entrance Diameter:
Between 0.320 inches and 0.350 inches
MRC:
Indicates the type of finger(s) provided with the item.AFXQ
Finger Type:
Split end single finger
Finger Length:
0.937 inches single finger and 1.063 inches single finger
MRC:
The length of a straight line which passes through the center of the finger, and terminates at the circumference.AFXX
Finger Diameter:
0.375 inches single finger
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
1440-01-087-9844 launching station, guided missile, semitrailer mounted
MRC:
Indicates the type of terminal for providing electrical connection to the item.CSCF
Terminal Type:
Solder well
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Beryllium copper finger
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Beryllium copper terminal
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Plastic, phenolic resin, paper base handle
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Plastic, phenolic resin, paper base insulator
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy finger
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy terminal
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic phenolic and paper handle
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic phenolic and paper insulator
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Nickel finger
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Nickel terminal
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off.plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a surface.SURF
Surface Treatment:
Nickel finger
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off.plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a surface.SURF
Surface Treatment:
Nickel terminal
