부품 정보

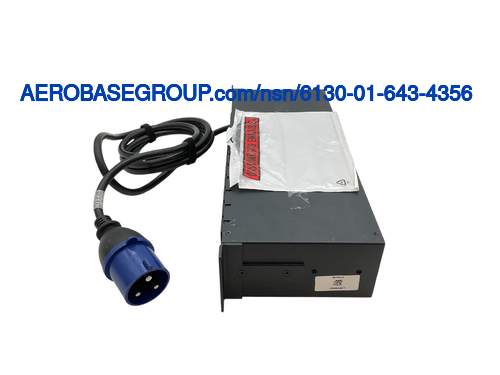

High-density cabinet power distribution unit
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
89.0 millimeters
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
432.0 millimeters
MRC:
The installation for which the item is designed.AMQY
Installation Design:
Rack
MRC:
The input value/s/,or range of values,for which the item is rated.APNX
Input Voltage Rating:
230.0 ac volts single operating power rqmt
MRC:
The output value/s/,or range of values,for which the item is rated.APPA
Output Voltage Rating:
230.0 ac volts single power output
MRC:
The number of complete cyclic changes,per unit of time,for which the input is rated.APTQ
Input Frequency Rating:
50.0 hertz and 60.0 hertz single operating power rqmt
MRC:
The number of complete cyclic changes,per unit of time,for which the output is rated.APTS
Output Frequency Rating:
50.0 hertz and 60.0 hertz single power output
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Circuit breaker
MRC:
The output current rating at which the item is designed to operate.CWGH
Output Current Rating:
32.0 ac amperes single power output
MRC:
The number of electrical output connections on the item.CWHF
Output Connection Quantity:
16 single power output
MRC:
Indicates the type of electrical output connection.CWHJ
Output Connection Type:
Connector, plug single power output
MRC:
The amount of input current for which the item is rated.CWHM
Input Current Rating:
32.0 ac amperes single operating power rqmt
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
178 mm in depth; 10/100 base-t ethernet; per outlet sensing; branch circuit protection; per input power sensing; temp and humidity monitoring
