부품 정보

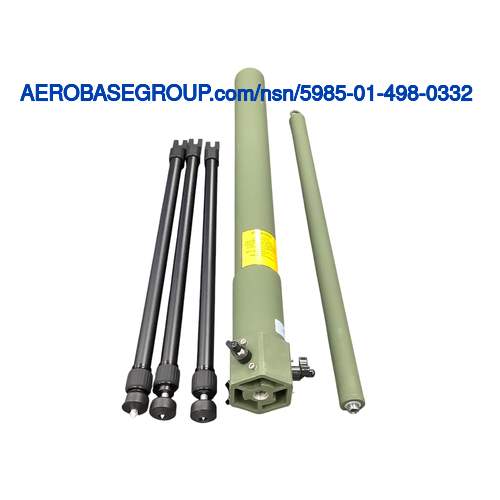

Lightweight rugged construction; vswr: less than 3.5: 1 at input connector; stowed size: 36" x 10" dia.
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
105.000 inches
MRC:
The length of a straight line which passes through the center of a mounting hole,and terminates at the circumference.ABTB
Mounting Hole Diameter:
0.750 inches
MRC:
The number of mounting holes provided.ABTJ
Mounting Hole Quantity:
1
MRC:
The number of complete cyclic changes,per unit of time,for which an item is rated.ACZB
Frequency Rating:
30.000 megahertz single antenna element and 88.000 megahertz single antenna element
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
Between 1.500 inches and 3.000 inches
MRC:
The minimum and maximum limits of temperature at which the item is rated for operation.AFGA
Operating Tempurature Range:
-40.0/+65.0 degrees celsius
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Nsn: 5895-01-476-4132, command system, tactical
MRC:
A letter or group of letters used to designate the particular coaxial connector series.AHUC
Coaxial Connector Series Designation:
N single antenna element
MRC:
The design of the connector end.AHUD
Connector End Design:
Socket single antenna element
MRC:
The orientation of the electrical vector of energy radiated from the item relative to the line of propagation.AJCT
Electromagnetic Polarization Type:
Vertical single antenna element
MRC:
The graphical representation of the radiation pattern of the device as a function of direction.AJCU
Radiation Pattern:
Omnidirectional single antenna element
MRC:
The amount of electrical energy that can be dissipated.AJDB
Power Rating:
200.000 watts cw single antenna element
MRC:
The reactance-resistance complex value which must be matched by the transmission line and termination to achieve lowest standing wave ratio,expressed in ohms.AJDD
Characteristic Impedance In Ohms:
50.0 single antenna element
MRC:
The means used to direct a beam/s/ of energy successively over a given region.AJDH
Beam Scanning Method:
Fixed single antenna element
MRC:
Indicates the design type of the item.APGF
Design Type:
Vertical single antenna element
MRC:
The means of attaching the item.AXGY
Mounting Method:
Threaded hole
MRC:
Indicates the type of terminal for providing electrical connection to the item.CSCF
Terminal Type:
Receptacle, coaxial single antenna element
MRC:
The ratio of the signal intensity of an item radiated in a specific direction to the signal intensity radiated in the same direction by a standard device,expressed in decibels.CTMN
Power Gain In Decibels:
2.00 single antenna element
