묘사:

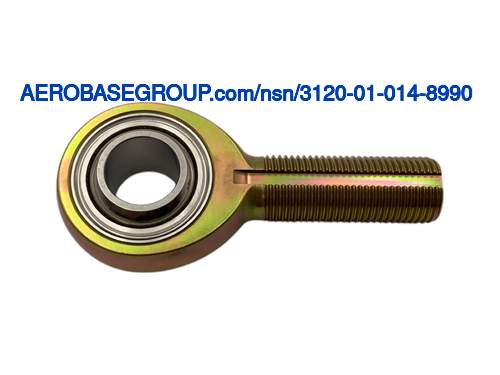

Rod End Plain Bearing
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Externally threaded
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 3.3725 inches and 3.4025 inches
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.6245 inches and 0.6250 inches
Outer Member Outside Diameter:
Between 1.5150 inches and 1.5350 inches
Bore Center To Shank End Distance:
Between 2.6150 inches and 2.6350 inches
Outer Member Width:
Between 0.5720 inches and 0.5820 inches
Inner Member Width:
Between 0.7480 inches and 0.7500 inches
Shank Thread Length:
Between 1.5310 inches and 1.5930 inches
MRC:
The limiting radial load which the item can carry at rest without permanent deformation of the stressed surface or the danger of fracture.AGKP
Static Radial Load Rating:
21900 pounds
MRC:
The length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AWDP
Thread Diameter:
0.625 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
18
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
39.0 rockwell c rod end body and 42.0 rockwell c rod end body
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polytetrafluoroethylene race liner
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 440c inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp e4340 rod end body
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 630 race insert or steel comp 631 race insert or steel comp 410 race insert
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5643 assn standard 1st material response race insert or ams 5528 assn standard 2nd material response race insert or aisi 410 assn standard 3rd material response race insert
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium rod end body
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate race insert
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response race insert
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-46 type 1 cl 1 federal specification single treatment response rod end body
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Ball type
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unf
