묘사:

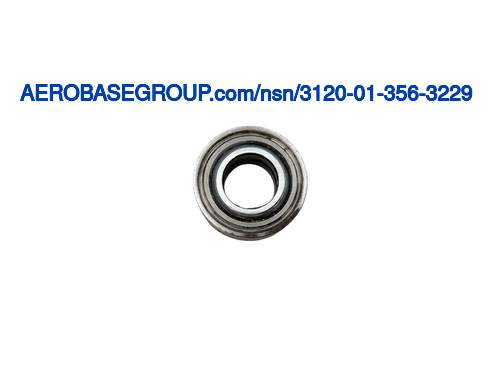

Self-aligning Plain Bearing
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.4370 inches and 0.4375 inches
MRC:
The element,compound,or mixture with which the item is lubricated.ADZG
Lubrication Material:
Grease, mil-g-21164
Outer Member Outside Diameter:
Between 0.9057 inches and 0.9062 inches
Outer Member Width:
Between 0.3380 inches and 0.3480 inches
Inner Member Width:
Between 0.4350 inches and 0.4370 inches
MRC:
The limiting radial load which the item can carry at rest without permanent deformation of the stressed surface or the danger of fracture.AGKP
Static Radial Load Rating:
18850 pounds
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
56.0 rockwell c inner member27.0 rockwell c outer race member and 36.0 rockwell c outer race member
MRC:
The feature inherent in the item design to effect lubrication.CTLM
Lubrication Feature:
Groove external outer memberperforation inner membergroove internal inner membergroove internal outer memberperforation outer race member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 440c inner membersteel comp e4340 outer race member or steel comp 4130 outer race member or steel comp 8630 outer race member
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ans 5630 assn standard single material response inner membermil-s-6758 military specification 1st material response outer race member or mil-s-6758 military specification 2nd material response outer race member or mil-s-6050 military specification 3rd material response outer race member
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Chromium inner membercadmium outer race member
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-c-320, cl 2 type 1 federal specification single treatment response inner member or qq-c-320, cl 2 type 2 federal specification single treatment response inner memberqq-p-416, ty1 cl 2 federal specification single treatment response outer race member
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Without insert or liner with staking groove
