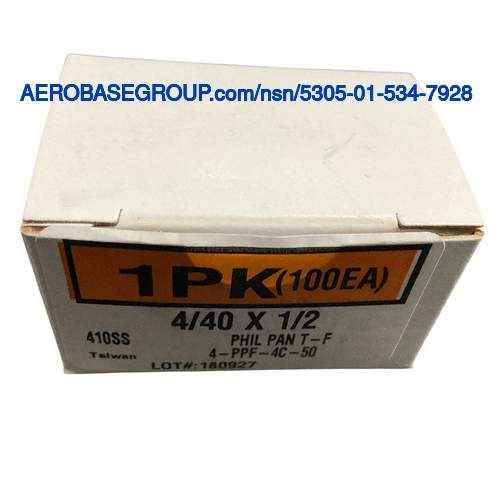

부품 번호 90410A108

Drive Screw

가격 및 가용성

이 NSN의 현재 가격 및 가용성에 대해 이 양식을 제출하십시오.
부품 번호:
양:
이메일 주소:
전화:
참조:
회사:
이름:

우리는 귀하의 정보를 누구에게도 공유하거나 판매하지 않습니다.
사생활 | 용어

All major credit cards accepted as well as gov. p-cards

이 제품의 과거 가격은 13.34 and 18.009 USD. 수량, 가용성, 상태, 리드 타임 및 품목 중단 가능성에 따라 최신 견적을 제공할 때까지 가격을 보장할 수 없습니다.

부품 번호
비무장화
수명
UOM
NIIN
부품 번호:
90410a108
비무장화:
No
수명:
N/A
측정 단위:
1 PG
NIIN:
015347928

부품 정보
This item has 40 threads per inch

NSN
국가 주식 번호:
5305-01-534-7928 5305015347928
TXT
묘사:
Drive Screw
INC
INC
아이템 이름 코드:
15896
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
0.500 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Pan
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
Between 0.193 inches and 0.211 inches
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
Between 0.075 inches and 0.086 inches
MRC:
The length of a straight line which passes through the center of that portion used to guide the item and terminates at the circumference.AAVL
Pilot Diameter:
Between 0.078 inches and 0.087 inches
MRC:
The length of the pilot,which is the unthreaded portion beyond the thread used to guide the item.AAVM
Pilot Length:
Between 0.062 inches and 0.088 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of a nonmachine thread.CRGF
Nonmachine Thread Style:
Double flute (type f)
MRC:
The length of a straight line which passes through the center of the nonmachine threaded portion,and terminates at the circumference.CTYF
Nonmachine Thread Diameter:
0.112 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
