묘사:

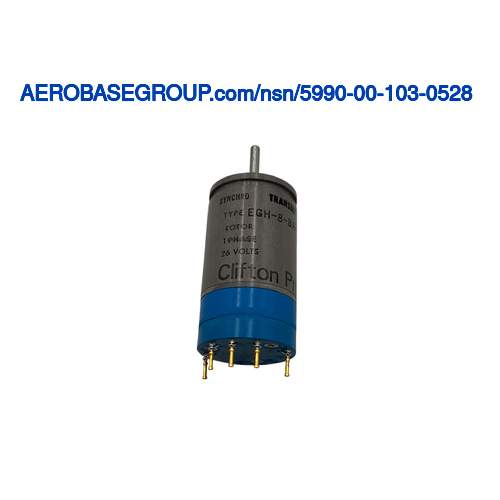

Transmitter Synchro
MRC:
The basic material of which the body is fabricated.AAFZ
Body Material:
Any acceptable
MRC:
The measure of sensitivity of the item to be packaged. a factor used by packaging engineers in devising proper cushioning in a package.AFJN
Fragility Factor:
Moderately rugged
MRC:
An alpha and/or numeric designation indicating the size by which the body is identified.AJSL
Body Size:
8
MRC:
The value of the primary excitation voltage for which the rotor is rated,expressed in volts.AJSR
Rotor Input Voltage Rating In Volts:
26.0
MRC:
The cycles per second /hertz/ of the alternating current.AJSS
Frequency In Hertz:
400.0
MRC:
The value of the primary excitation current for which the rotor is rated,with stator /secondary/ circuit open.AJST
Rotor Input Current Rating:
50.0 milliamperes
MRC:
The value of the primary /electrical/ excitation power for which the rotor is rated.AJSV
Rotor Input Electrical Power Rating:
0.52 milliwatts
MRC:
The resistance /r/ part of the rotor impedance with the stator open /zro/,expressed in ohms.AJSW
Zro Resistance In Ohms:
625.00
MRC:
The difference between the phase time of two or more voltages or currents of the same frequency,at the same instant of time,expressed in degrees.AJVF
Phase Shift Angle In Deg:
16.000 input to output
MRC:
The limits of permissible deviation in angular arc error from electrical zero,expressed in minutes.AJVL
Electrical Error Angular Range In Minutes:
-14.0/+14.0
MRC:
The limits of permissible deviation in angular arc error from electrical zero,expressed in minutes.AJVL
Electrical Error Angular Range In Minutes:
-14.0 to 14.0
MRC:
The reactance (x) part of the rotor impedance with the stator open (zro).CQXQ
Plus J Zro Reactance In Ohms:
70.00
MRC:
The ratio of the output voltage to the input voltage at maximum coupling.CSJY
Transformation Ratio:
0.454 rotor to stator
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
5 solder stud
