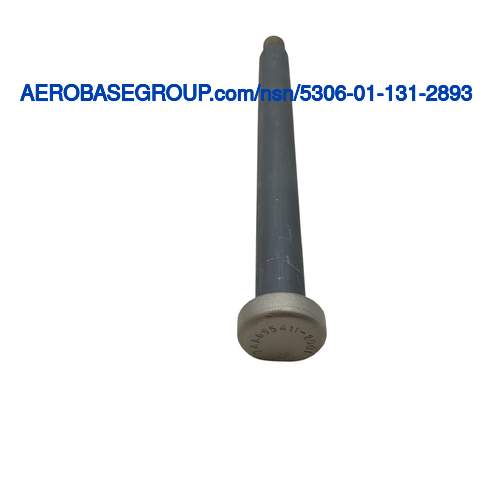

MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
0.375 inches
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
4.268 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Dee
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
0.625 inches
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
0.188 inches
Distance From Centerline To Flat:
Between 0.245 inches and 0.250 inches
MRC:
The length of a straight line which passes through the center of the shoulder and terminates at the circumference.AATN
Shoulder Diameter:
0.4740 inches first shoulder and 0.4745 inches first shoulder
MRC:
The length of the enlarged portion of the shank on the item,in distinction from width or diameter.AATX
Shoulder Length:
3.893 inches first shoulder
MRC:
The length of a straight line which passes through the center of the shank unthreaded hole,and terminates at the inside circumference.AAWB
Shank Unthreaded Hole Diameter:
0.076 inches first hole
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
0.312 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
24
MRC:
The distance from the shank hole centerline to the largest bearing surface of the head.CRZS
Distance From Head Largest Bearing Surface To Shank Hole Center:
4.150 inches first hole
MRC:
The physical configuration of the unthreaded portion of a body adjacent to the head which is larger than the diameter of the shank.CWYB
Shoulder Shape:
Round first shoulder
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp xm-13
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5629 assn standard single material response
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf
