부품 정보

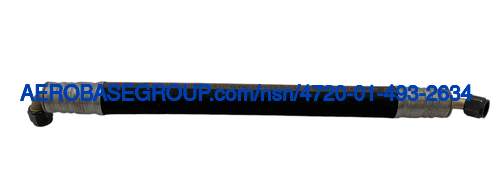

Hose assembly-rubber-flared, medium pressure, self sealing
TXT
묘사:
Nonmetallic Hose Assembly
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand 1st end
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
0.750 inches
MRC:
The amount of rotation in a counterclockwise direction needed to bring the centerline of one rigid elbow into coincidence with the centerline of the rigid elbow on the opposite end,expressed in degrees.ADKX
Angle Between Rigid Elbow Fittings In Deg:
177.0
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Helicopter observation, oh-58d
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Swivel nut flare 1st end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Swivel nut flare 2nd end
MRC:
The physical configuration of the outside of the end connection.AKUU
End Connection Design:
Elbow 1st end
MRC:
The physical configuration of the outside of the end connection.AKUU
End Connection Design:
Elbow 2nd end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded internal tube 1st end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
37.0 degrees 1st end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
37.0 degrees 2nd end
MRC:
The angle that the flow is turned from the straight flow.CRFY
Flow Angle:
45.0 degrees 1st end
MRC:
The angle that the flow is turned from the straight flow.CRFY
Flow Angle:
90.0 degrees 2nd end
MRC:
The means used and the measurement of the longest dimension of an item.CRXX
Measuring Method And Length:
22.500 inches working
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Code "kl" designates a hose assembly consisting of size 12 hose and size 10 end fittings
