묘사:

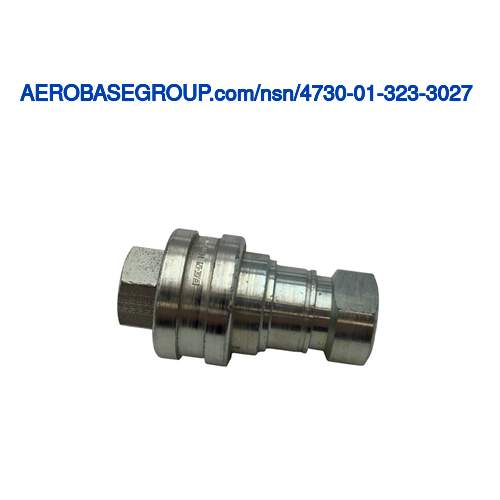

Quick Disconne Coupling Assembly
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
4.260 inches
MRC:
A measurement of the longest dimension of the second leg, in distinction from width.ADLL
Second Leg Length:
0.750 inches
MRC:
The means by which mechanical action completely engages or disengages a mating quick disconnect part.ADLN
Quick Disconnect Method:
Push-pull all ends
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Plain first fluid end connection
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
1.370 inches
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded internal pipe first fluid end connection
MRC:
Indicates whether or not the second end is identical to the first end.CQBB
Second End Relationship With First End:
Identical
MRC:
The maximum pressure at which an item is rated to operate for each type of service with which an item may be used.CQCJ
Maximum Operating Pressure And Media For Which Designed:
4000.0 pounds per square inch any acceptable
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
4000.0 pounds per square inch single response
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.750 inches first fluid end connection
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Coupling assembly
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Npt first fluid end connection
