묘사:

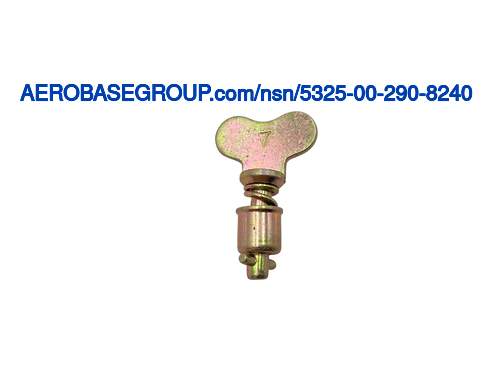

Turnlock Fastener Stud Assembly
Head Length:
Between 0.850 inches and 0.890 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the turnlock stud head.AGRD
Turnlock Stud Head Style:
Flat countersunk wing
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the stud assembly.AGRE
Stud Assembly Style:
Stud assembly
Distance From Engaging Member To Largest Bearing Surface Of Head:
Between 0.603 inches and 0.618 inches
Eyelet Outside Diameter:
Between 0.341 inches and 0.348 inches
Eyelet Length:
0.352 inches
MRC:
The thickness of the material to be accommodated.AGSM
Material Accommodated Thickness:
Between 0.231 inches and 0.260 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1009 eyelet or steel comp 1050 eyelet or steel comp 1112 eyelet
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1009 head
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 4037 stud
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel pin
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-w-470 federal specification single material response ejector spring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-w-470 federal specification single material response pin
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 2, cl 2 federal specification all treatment responses
