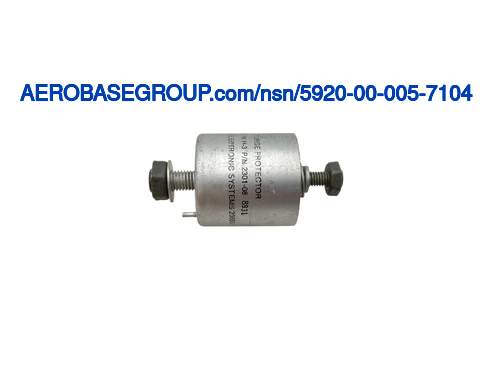

Electrical Surge Arrester
MRC:
The basic material of which the body is fabricated.AAFZ
Body Material:
Metal
MRC:
The number of terminals for providing electrical connection to the item.AARA
Terminal Quantity:
2
MRC:
Indicates the type of terminals for providing electrical connection to the item.AARB
Terminal Type:
Threaded stud
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 1.110 inches and 1.160 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
Between 1.086 inches and 1.130 inches
MRC:
The means of attaching the item.ADJH
Mounting Method:
Terminal
MRC:
Indicates the designed use of the item.ALBY
Usage Design:
Indoor and outdoor
MRC:
The pattern or arrangement that describes the mounting configuration of the item.ALGC
Mounting Configuration:
0.250-28 thd stud 0.460 in. @nom length at mtg base end of arrester
MRC:
Indicates the type of arrester.AQAP
Arrester Type:
Air gap
MRC:
The voltage at which the item will break down.AQAQ
Breakdown Voltage:
Between 350.000 volts and 450.000 volts
MRC:
An indication of the line to ground voltage.AQAR
Line To Ground Voltage:
Between 28.000 volts and 115.000 volts
