부품 번호 50-240311AAA87

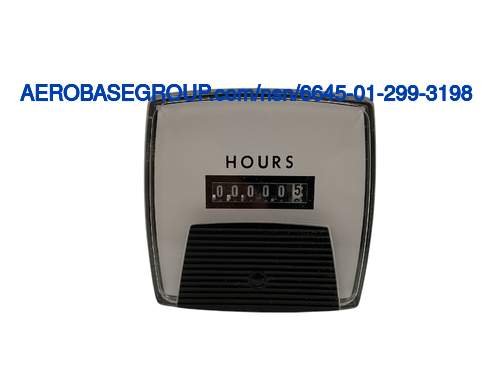

Time Totalizing Meter

가격 및 가용성

이 NSN의 현재 가격 및 가용성에 대해 이 양식을 제출하십시오.
부품 번호:
양:
이메일 주소:
전화:
참조:
회사:
이름:

우리는 귀하의 정보를 누구에게도 공유하거나 판매하지 않습니다.
사생활 | 용어

All major credit cards accepted as well as gov. p-cards

이 제품의 과거 가격은 102.34 and 138.159 USD. 수량, 가용성, 상태, 리드 타임 및 품목 중단 가능성에 따라 최신 견적을 제공할 때까지 가격을 보장할 수 없습니다.

부품 번호
비무장화
수명
UOM
NIIN
부품 번호:
50-240311aaa87
비무장화:
No
수명:
N/A
측정 단위:
1 EA
NIIN:
012993198
NSN
국가 주식 번호:
6645-01-299-3198 6645012993198
TXT
묘사:
Time Totalizing Meter
INC
INC
아이템 이름 코드:
08066
MRC:
The number of terminals for providing electrical connection to the item.AARA
Terminal Quantity:
2
MRC:
Indicates the type of terminals for providing electrical connection to the item.AARB
Terminal Type:
Threaded stud
MRC:
Indicates the type of mount utilized to support the item.AAXX
Mounting Type:
Panel
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
2.700 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
2.700 inches
MRC:
The length of a straight line which passes through the center of the body,and terminates at the circumference.ABPM
Body Diameter:
2.215 inches
MRC:
Indicates the type of current whether alternating,direct,or both.ACDC
Current Type:
Ac
MRC:
A measurement of the longest dimension of the body,in distinction from width.ADAQ
Body Length:
3.253 inches
MRC:
The element,compound,or mixture of which the case is fabricated,excluding any surface treatment.ADTV
Case Material:
Plastic
MRC:
The pattern or arrangement that describes the mounting configuration of the item.ALGC
Mounting Configuration:
Four 0.112 in. Diameter by 0.5 in. Lg threaded studs equally spaced on 1.88 in. Centers
MRC:
Indicates the type of device used to register the condition(s).AMKD
Indicator Type:
Dial-counter
MRC:
The value(s) of potential for which the item is rated.AMSE
Voltage Rating:
120.0 volts
MRC:
Indicates the type of unit.APQB
Unit Type:
Mounted
MRC:
The frequency at which the item functions.APTT
Operating Frequency:
Between 50.0 hertz and 60.0 hertz
MRC:
An indication of whether or not a hermetic protection is provided.AQCS
Hermetic Protection:
Not provided
MRC:
Indicates the type of movement provided.AQEC
Movement Type:
Electrical and mechanical
MRC:
The means of attaching the item.AXGY
Mounting Method:
Semiflush
MRC:
An indication of whether or not the item is provided with a reset feature.BHCH
Reset Feature:
Not provided
MRC:
Indicates the type of electrical movement provided.BHLR
Electrical Movement Type:
Motor
MRC:
The justification for the assignment of a federal supply class /fsc/ to an item based on the classification of the next higher classifiable assembly.ZZZV
Fsc Application Data:
Time measuring instruments
