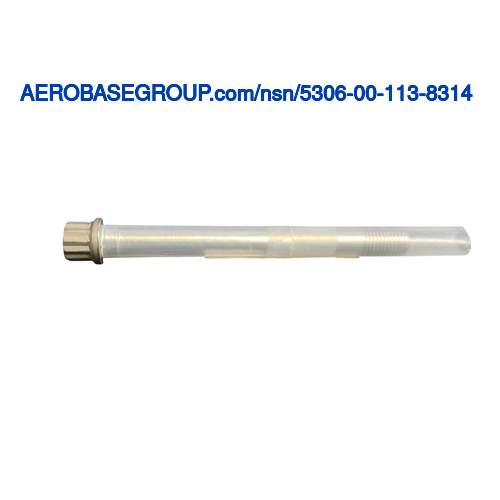

MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
Between 0.540 inches and 0.560 inches
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 3.365 inches and 3.385 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Double hexagon w/hole
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
0.375 inches
Width Between Flats:
Between 0.367 inches and 0.376 inches
Extended Washer Diameter:
0.500 inches
Extended Washer Thickness:
Between 0.070 inches and 0.080 inches
MRC:
The length of a straight line which passes through the center of the shoulder and terminates at the circumference.AATN
Shoulder Diameter:
0.326 inches first shoulder and 0.327 inches first shoulder
MRC:
The length of a straight line which passes through the center of the shoulder and terminates at the circumference.AATN
Shoulder Diameter:
0.326 inches and 0.327 inches first shoulder
MRC:
The length of the enlarged portion of the shank on the item,in distinction from width or diameter.AATX
Shoulder Length:
0.120 inches first shoulder and 0.180 inches first shoulder
MRC:
The length of the enlarged portion of the shank on the item,in distinction from width or diameter.AATX
Shoulder Length:
0.120 inches and 0.180 inches first shoulder
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
0.312 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
24
MRC:
The physical configuration of the unthreaded portion of a body adjacent to the head which is larger than the diameter of the shank.CWYB
Shoulder Shape:
Round first shoulder
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf
