묘사:

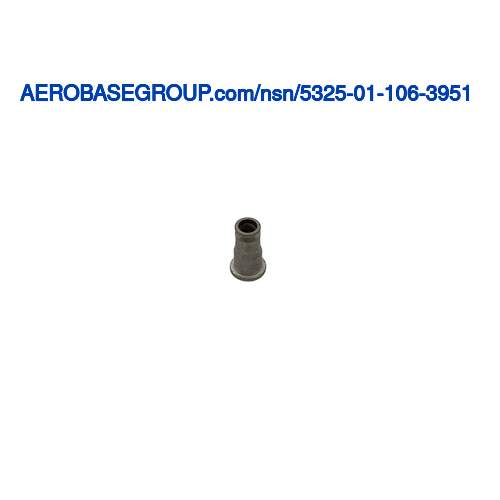

Turnlock Fastener Stud
Grip Length:
Between 0.245 inches and 0.255 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the circumference.ABMZ
Diameter:
0.399 inches
MRC:
Indicates the type of device used to fasten the item.ADQB
Securing Device Type:
Ring
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the turnlock stud shank.AGQY
Turnlock Stud Shank Style:
Stud shank
MRC:
A measurement of the longest dimension of an extension,in distinction from width.AGRC
Extension Length:
0.361 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the turnlock stud head.AGRD
Turnlock Stud Head Style:
Flat fillister
MRC:
Indicates the type of drive for turning,rotating,or positioning the mechanism.AKCV
Drive Type:
Socket
MRC:
Designates the thread diameter,series/type,and number of threads per measurement scale of the stud.ALBJ
Stud Thread Size And Series/type Designator:
0.190-32 unf
Stud Head Height:
Between 0.040 inches and 0.045 inches
Stud Shank Major Diameter:
Between 0.311 inches and 0.312 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
