부품 정보
Burst pressure 1500 psid min
TXT
묘사:

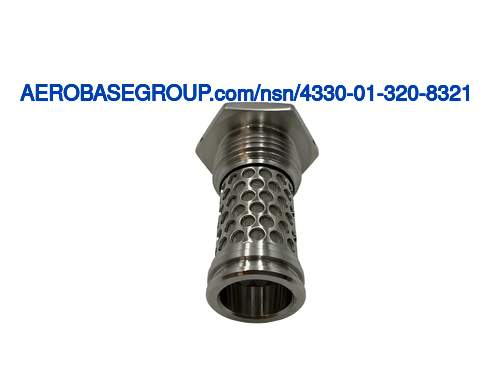

Fluid Filter Element
MRC:
The length of a straight line which passes through the center of the body,and terminates at the circumference.ABPM
Body Diameter:
Between 0.921 inches and 0.923 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
Between 0.811 inches and 0.813 inches
MRC:
A numeric value which represents the number of perforations contained in the item.AKSW
Perforation Quantity:
2.3 per square inch
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the body.AZTL
Bodylength:
Between 1.980 inches and 2.020 inches
MRC:
An indication of the structure or characteristic of the filtering media.CRXW
Filtering Media Design:
Mesh single filtering media response
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 316l filtering medium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5524 assn standard single material response filtering medium
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Water
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate filtering medium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35, ty i, ii, or iii federal specification single treatment response filtering medium
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Cylindrical w/out container
MRC:
The justification for the assignment of a federal supply class /fsc/ to an item based on the classification of the next higher classifiable assembly.ZZZV
Fsc Application Data:
Mk1mod0, module, 8 cell
