부품 정보

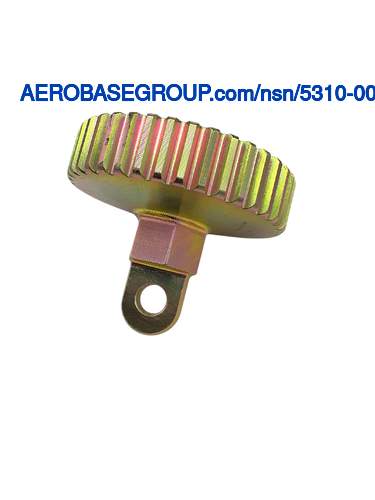

Spline data, 40 teeth, 0. 930 in.Face w, 10/20 diametral pitch, 30 degrees pressure angle, 4.000 in. Pitch dia, closed end w/center hexagon wrenching surface, 1.246 in. Nom across flats by 0.820 in. Lg wrenching surface terminated by 0.500 in. Rounded extension, 1.280 in. Lg with 0.532 in. Nom diameter hole drilled through flat surface
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-s-5626, comp 4140, cond d1 military specification single material response or mil-s-5000, comp 4340, cond c1, military specification single material response or mil-s-6758, comp 4130, cond d1 military specification single material response
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 1, cl 1 federal specification single treatment response
MRC:
The specification,standard,drawing,or similar instrument that specifies environmental and performance requirements or test conditions under which an item is tested and establishes acceptable limits within which the item must conform identified by an alphabetic and/or numeric reference number. includes the commercial and government entity (cage) code of the entity controlling the instrument.TEST
Test Data Document:
81349-mil-i-6868 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.). And 97499-bps 4075 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
