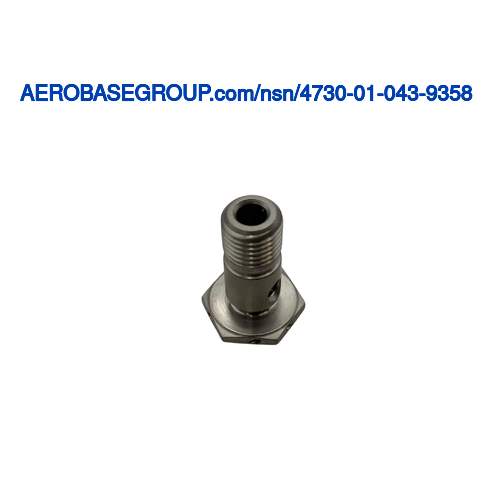

Fluid Passage Bolt
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Plain
Concentric Hole Depth:
Between 0.702 inches and 0.722 inches
Concentric Hole Diameter:
Between 0.172 inches and 0.180 inches
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 0.928 inches and 0.948 inches
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.ACMR
Second End Thread Class:
3a
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.ACMS
Second End Thread Direction:
Right-hand
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 0.615 inches and 0.635 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the wrenching feature.BBDF
Wrenching Feature Style:
Hexagon
First Diameter From Wrenching Feature:
Between 0.372 inches and 0.373 inches
Length From Bearing Surface Of Wrenching Feature To End Of First Diameter:
Between 0.510 inches and 0.520 inches
First Radial Fluid Hole Diameter:
Between 0.178 inches and 0.198 inches
Distance From First Radial Hole Center To End Of Bolt:
Between 0.608 inches and 0.628 inches
Length From Bearing Surface Of Wrenching Feature To Bolt End:
Between 0.828 inches and 0.848 inches
Wrenching Feature Height:
Between 0.090 inches and 0.110 inches
MRC:
The number of threads per linear inch,including incomplete threads,on a line parallel to the thread axis.CRMX
Second End Thready Qty Per Inch (tpi):
24
MRC:
The designation which is used for the purpose of general identification of the nominal thread size.CRNB
Second End Thread Size:
0.375 inches
MRC:
A designator distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.CRPF
Second End Thread Series Designator:
Unf
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium, mil-t-9047, comp 6
