묘사:

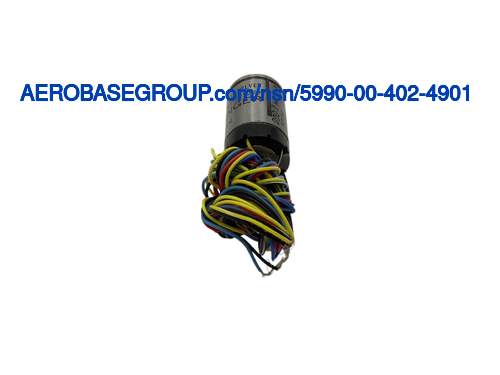

Electrical Resolver
MRC:
The basic material of which the body is fabricated.AAFZ
Body Material:
Any acceptable
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Standard round a
MRC:
The length of a straight line which passes through the center of that portion used to guide the item and terminates at the circumference.AAVL
Pilot Diameter:
Between 0.4995 inches and 0.5000 inches
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.7810 inches
MRC:
The length of a straight line which passes through the center of a flange,and terminates at the circumference.ABKK
Flange Diameter:
0.7550 inches
MRC:
A measurement of the smallest dimension of a flange,in distinction from length or width.ABKU
Flange Thickness:
0.0620 inches
Undercut Diameter:
0.6910 inches
Undercut Width:
0.0570 inches
MRC:
The length of a straight line which passes through the center of a shaft,and terminates at the circumference.ABWV
Shaft Diameter:
0.0895 inches single shaft and 0.0900 inches single shaft
MRC:
A measurement of the longest dimension of the shaft,in distinction from width.ABXF
Shaft Length:
0.5400 inches single shaft
MRC:
An alpha and/or numeric designation indicating the size by which the body is identified.AJSL
Body Size:
8
MRC:
The value of the primary excitation voltage for which the rotor is rated,expressed in volts.AJSR
Rotor Input Voltage Rating In Volts:
11.8
MRC:
The cycles per second /hertz/ of the alternating current.AJSS
Frequency In Hertz:
800.0
MRC:
The value of the primary excitation current for which the rotor is rated,with stator /secondary/ circuit open.AJST
Rotor Input Current Rating:
43.0 milliamperes
MRC:
The value of the primary /electrical/ excitation power for which the rotor is rated.AJSV
Rotor Input Electrical Power Rating:
120.0 allqjaa3.500 finished-chamfered
MRC:
The resistance /r/ part of the rotor impedance with the stator open /zro/,expressed in ohms.AJSW
Zro Resistance In Ohms:
72.00
MRC:
The resistance /r/ part of the stator impedance with the rotor open /zso/,expressed in ohms.AJSY
Zso Resistance In Ohms:
82.00
MRC:
The resistance /r/ part of the rotor impedance with the stator shorted /zrs/,expressed in ohms.AJTA
Zrs Resistance In Ohms:
81.00
MRC:
The resistance /r/ part of the stator impedance with the rotor shorted /zss/,expressed in ohms.AJTC
Zss Resistance In Ohms:
101.00
MRC:
The opposition that the rotor offers to the flow of the direct current,expressed in ohms.AJTS
Rotor Dc Resistance In Ohms:
51.00
MRC:
The opposition that the stator offers to the flow of direct current,expressed in ohms.AJTT
Stator Dc Resistance In Ohms:
49.50
MRC:
The difference between the phase time of two or more voltages or currents of the same frequency,at the same instant of time,expressed in degrees.AJVF
Phase Shift Angle In Deg:
10.500 input to output
MRC:
The deviation from 90 degrees perpendicularity of the secondary winding,when excitation is applied to one of the primary windings,expressed in minutes.AJVJ
Interaxis Error Angular Range In Minutes:
-30.0/+30.0
MRC:
The amount of rotary force that must be applied to the actuator to cause rotation,at minus 55 degrees celsius.AJVS
Actuator Friction Torque At Minus 55 Deg Celsius:
9.00 centimeter-grams
MRC:
The amount of rotary force that must be applied to the actuator to cause rotation,at plus 25 degrees celsius.AJVT
Actuator Friction Torque At Plus 25 Deg Celsius:
3.00 centimeter-grams
MRC:
The measurement taken from the bearing face to the point on the shaft where the weight /load/ is applied.AJWE
Shaft Radial Play Test Point:
0.120 inches
MRC:
The maximum shaft displacement perpendicular to the shaft axis due to reversal of a specified force applied perpendicular to the shaft axis,and measured at a specified distance from the front surface of the unit.AJWG
Shaft Maximum Radial Play:
0.0008 inches
MRC:
The axial shaft displacement due to reversal of a specified axial force,measured at the end of the shaft.AJWH
Shaft End Play:
Between 0.0003 inches and 0.0015 inches
MRC:
A measurement of the longest dimension of a pilot,in distinction from width.AJWQ
Pilot Length:
0.0430 inches
Mounting Surface To Terminal End Distance:
1.2410 inches
MRC:
Indicates the location of the terminal/s/ on the item.CQTM
Terminal Location:
Rear
MRC:
The reactance (x) part of the rotor impedance with the stator open (zro).CQXQ
Plus J Zro Reactance In Ohms:
270.00
Shaft Slot Depth:
0.0200 inches single shaft and 0.0350 inches single shaft
MRC:
The reactance (x) part of the stator impedance with the rotor open (zso),expressed in ohms.CRGZ
Plus J Zso Reactance In Ohms:
342.00
Shaft Slot Width:
0.0150 inches single shaft and 0.0300 inches single shaft
MRC:
The reactance /x/ part of the rotor impedance with the stator shorted /zrs/,expressed in ohms.CRKL
Plus J Zrs Reactance In Ohms:
27.00
MRC:
Indicates the type of shaft included on the item.CRSJ
Shaft Type:
Round, slotted single shaft
MRC:
The reactance /x/ part of the stator impedance with the rotor shorted /zss/,expressed in ohms.CSFG
Plus J Zss Reactance In Ohms:
37.00
MRC:
The ratio of the output voltage to the input voltage at maximum coupling.CSJY
Transformation Ratio:
1.022 rotor to stator
MRC:
The force (load) applied perpendicular to the shaft axis to determine radial play.CWXK
Shaft Radial Play Determining Weight:
4.0 ounces
MRC:
The force (load) applied parallel to the shaft axis to determine end play.CWYF
Shaft End Play Determining Weight:
8.0 ounces
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
7 wire lead
