부품 번호 11400-1

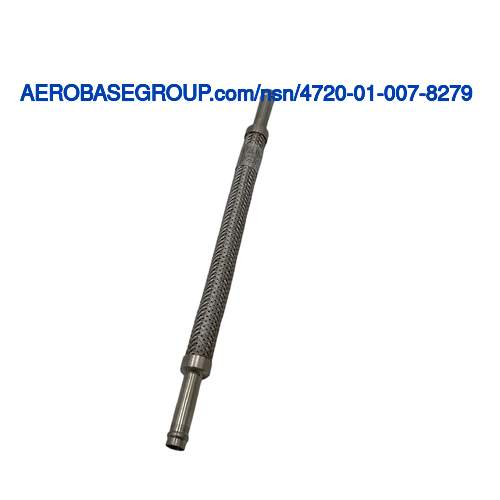

Metallic Hose Assembly

가격 및 가용성

이 NSN의 현재 가격 및 가용성에 대해 이 양식을 제출하십시오.
부품 번호:
양:
이메일 주소:
전화:
참조:
회사:
이름:

우리는 귀하의 정보를 누구에게도 공유하거나 판매하지 않습니다.
사생활 | 용어

All major credit cards accepted as well as gov. p-cards

이 제품의 과거 가격은 225.6 and 304.56 USD. 수량, 가용성, 상태, 리드 타임 및 품목 중단 가능성에 따라 최신 견적을 제공할 때까지 가격을 보장할 수 없습니다.

부품 번호
비무장화
수명
UOM
NIIN
부품 번호:
11400-1
비무장화:
No
수명:
N/A
측정 단위:
1 EA
NIIN:
010078279
NSN
국가 주식 번호:
4720-01-007-8279 4720010078279
TXT
묘사:
Metallic Hose Assembly
INC
INC
아이템 이름 코드:
17972
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Round
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
Between 0.490 inches and 0.510 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.ABJH
Tempurature Rating:
-40.0 degrees fahrenheit single response and 200.0 degrees fahrenheit single response
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
Between 0.740 inches and 0.760 inches
MRC:
The minimum inside bending radius formed without stressing or deformation of a flexible item.ACKH
Minimum Inside Bending Radius:
4.000 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the inner conveying tube.ADJL
Inner Conveying Tube Style:
Annular open-pitch corrugated
MRC:
The element,compound,or mixture of which the inner conveying tube is fabricated.ADJM
Unable To Decode:
Unable to decode or unable to decode
MRC:
The hue or tint of the exterior of the item.ADJS
Exterior Color:
Natural
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Beaded 1st end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Unthreaded external hose 1st end
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Identical ends
MRC:
The minimum internal pressure rating,determined by destruction tests,at which the item can be expected to rupture.CQBD
Burst Test Pressure:
2600.0 pounds per square inch
MRC:
The material and formation identifying the structural characteristic/s/ of the item and location.CQCS
Layer Composition And Location:
Outer layer braided corrosion resistant steel wire
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
650.0 pounds per square inch
MRC:
A steady,uniform,internal,static pressure that the item must withstand without leakage,abnormal distortion,or damage.CRDW
Hydrostatic Test Pressure:
1300.0 pounds per square inch
MRC:
The type of protection provided by the outer covering.CRJM
Outer Covering Environmental Protection:
Corrosion resistant
MRC:
The means used and the measurement of the longest dimension of an item.CRXX
Measuring Method And Length:
13.000 inches
MRC:
The nominal length of a straight line which passes through the center of the accommodated hose,and terminates at the inside circumference.CWDW
Inside Diameter Hose Accommodated:
0.750 inches 1st end
