묘사:

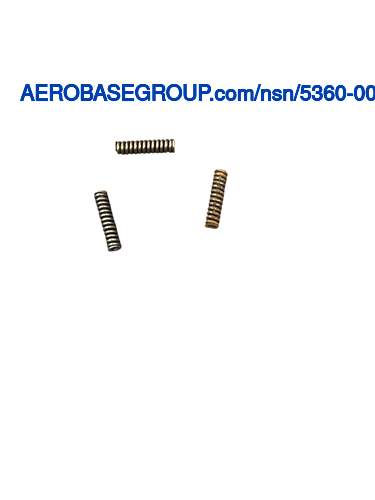

Compression Helical Spring
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
0.160 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the end.ABQK
End Style:
E4 spring end, squared and ground both ends
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
0.370 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Hw/s: tarawa class lha; supply class aoe; whidbey island class lsd; armored vehicle launch bridge (m60a1 & m45a5; fms-newport class lst; safeguard class ars; wasp class lhd; fire pumps; nimitz class cvn
Spring Free Length:
1.250 inches
MRC:
The length of a straight line which passes through the center of the accommodated rod,and terminates at the circumference.AHQJ
Accommodated Rod Diameter:
0.156 inches
MRC:
The number of coils included on the item.APCN
Coil Quantity:
14-1/2
Spring Solid Length:
1.000 inches
MRC:
An indication of the coil helix direction.AXLH
Coil Helix Direction:
Right-hand or left-hand
MRC:
The weight,per specific measurement scale,required to deflect the spring.AXLP
Spring Deflection Rate:
200.000 pounds per inch
Spring Free Outside Diameter:
0.294 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Cylindrical
