MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.763 inches and 0.783 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
1.271 inches
MRC:
A measurement of the smallest dimension of the material,in distinction from length or width.ABPX
Material Thickness:
Between 0.188 inches and 0.198 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Mrap buffalo mk2a2
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
Between 35.0 rockwell c and 43.0 rockwell c
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 301 or steel comp 302 or steel comp 303 or steel comp 304 or steel comp 303se or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310 or steel comp 310s or steel comp 314 or steel comp 316 or steel comp 316l or steel comp 317 or steel comp 321 or steel comp 347 or steel comp 348 or steel comp 385 or steel comp 302 or steel comp 384
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
66 federal standard all material responses
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response
MRC:

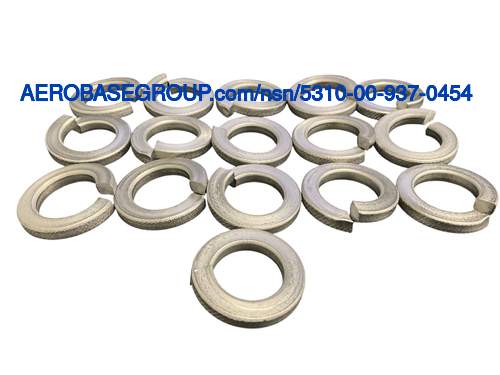

The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Split helical-right hand
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
2 style and c class
