부품 번호 0311C0012

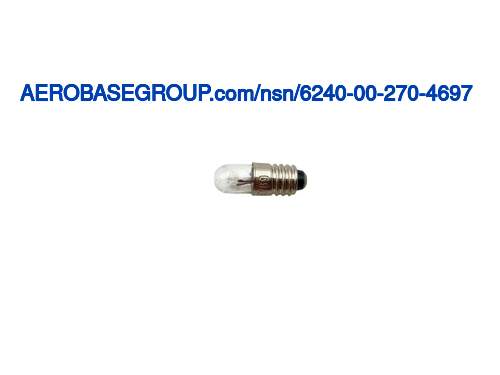

Incandescent Lamp
묘사

Lamp

재고 가용성  제품 상태 코드

부품 번호 0311c0012 다음과 같은 수량과 조건으로 재고가 있습니다.

  • NE: 66
  • NS: 152

참고: 이 항목의 가용성은 마지막으로 업데이트되었습니다. 12/29/2023 그 이후로 변경되었을 수 있습니다. 최신 가격 및 가용성에 대한 견적을 요청하십시오.

가격 및 가용성

이 NSN의 현재 가격 및 가용성에 대해 이 양식을 제출하십시오.
부품 번호:
양:
이메일 주소:
전화:
참조:
회사:
이름:

우리는 귀하의 정보를 누구에게도 공유하거나 판매하지 않습니다.
사생활 | 용어

All major credit cards accepted as well as gov. p-cards

이 제품의 과거 가격은 0.46 and 0.621 USD. 수량, 가용성, 상태, 리드 타임 및 품목 중단 가능성에 따라 최신 견적을 제공할 때까지 가격을 보장할 수 없습니다.

부품 번호
비무장화
수명
UOM
NIIN
부품 번호:
0311c0012
비무장화:
No
수명:
N/A
측정 단위:
100 EA
NIIN:
002704697
NSN
국가 주식 번호:
6240-00-270-4697 6240002704697
TXT
묘사:
Incandescent Lamp
INC
INC
아이템 이름 코드:
00727
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
0.680 inches
MRC:
A designation of the form of the filament wire or ribbon and the arrangement on the supports.AFSP
Filament Designation:
C-2r
MRC:
The value of output brightness for which an item is rated.AFST
Light Output Rating:
0.220 spherical candlepower single rating
MRC:
The numeric value indicating the average life expectancy for which the item is rated,expressed in hours.AFSV
Average Life Rating In Hours:
500.0
MRC:
An indication of the peculiar type of heavy duty performance for which the filament is rated.AFSX
Filament Heavy Duty Service Rating:
Not rated
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Fms-asroc launcher; helicopter, sea king h-3; systems, 02n2; elevators, aircraft; boilers, 1200 psi; stream (std, tensioned replenishment at sea method); chilled water a/c systems; fire pumps; l.P. Compressors; elevators, cargo/weapons; main feed pumps
MRC:
The characteristic of the radiant energy generated by the lamp within or adjacent to the visible spectrum of light.AGDV
Emitted Light Characteristic:
Colorless
MRC:
The distance from the geometric center of the light source to a particular point on the item.AGDW
Light Center Length:
0.500 inches
MRC:
The value(s) of potential for which the item is rated.AMSE
Voltage Rating:
2.500 volts
MRC:
The rated power that an item can safely consume or provide.BDWW
Wattage Rating:
0.500 watts
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the base.CRPS
Base Style:
Midget screw
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the bulb.CRSK
Bulb Style:
T (tubular)
MRC:
A designation which indicates the shape and size of the bulb.CSJW
Bulb Designator:
T-1 3/4
MRC:
An indication of the light transmission characteristic of the bulb.CSMC
Bulb Light Transmission Characteristic:
Transparent
MRC:
The amount of current for which the item is designed.CTQM
Current Rating For Which Designed:
0.200 amperes
MRC:
A term denoting the measurement used to indicate the average life of the item.CWBF
Rated Average Life:
Hours
MRC:
The position in which the item is designed to operate.CWGK
Burning Position:
Any acceptable
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
08108-1769 manufacturers standard
