묘사:

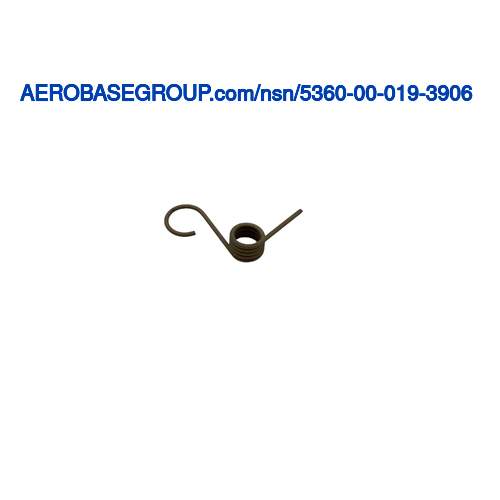

Torsion Helical Spring
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
0.250 inches
Hook Opening Width:
0.176 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the end.ABQK
End Style:
Offset hinge end, left side second end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the end.ABQK
End Style:
One hook end first end
Spring Free Length:
0.230 inches
MRC:
The number of coils included on the item.APCN
Coil Quantity:
4-1/3
MRC:
An indication of the coil helix direction.AXLH
Coil Helix Direction:
Right-hand
Spring Free Outside Diameter:
0.348 inches
Hook Radius:
0.170 inches
MRC:
An indication of the angular relationship of the ends of the item.AXMH
End Angular Relationship:
Ends angled one to other
End Length:
0.620 inches first end
End Length:
0.790 inches second end
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel uns k08500 and steel
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-w-470, comp a and b federal specification all material responses
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Single torsion left hand
