부품 번호 0038.0046.T

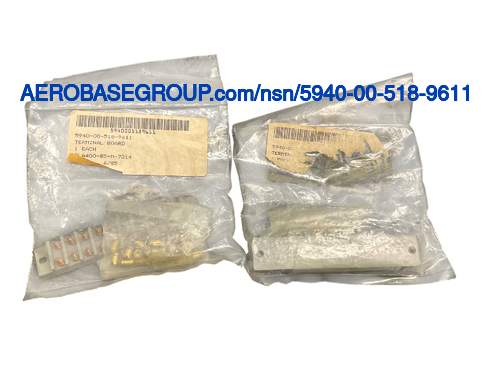

Terminal Board
묘사

Terminal

재고 가용성  제품 상태 코드

부품 번호 0038.0046.t 다음과 같은 수량과 조건으로 재고가 있습니다.

  • NE: 487
  • NS: 407

참고: 이 항목의 가용성은 마지막으로 업데이트되었습니다. 07/16/2024 그 이후로 변경되었을 수 있습니다. 최신 가격 및 가용성에 대한 견적을 요청하십시오.

가격 및 가용성

이 NSN의 현재 가격 및 가용성에 대해 이 양식을 제출하십시오.
부품 번호:
양:
이메일 주소:
전화:
참조:
회사:
이름:

우리는 귀하의 정보를 누구에게도 공유하거나 판매하지 않습니다.
사생활 | 용어

All major credit cards accepted as well as gov. p-cards

이 제품의 과거 가격은 16.14 and 21.789 USD. 수량, 가용성, 상태, 리드 타임 및 품목 중단 가능성에 따라 최신 견적을 제공할 때까지 가격을 보장할 수 없습니다.

부품 번호
비무장화
수명
UOM
NIIN
부품 번호:
0038.0046.t
비무장화:
Yes - DEMIL/MLI
수명:
N/A
측정 단위:
1 EA
NIIN:
005189611
NSN
국가 주식 번호:
5940-00-518-9611 5940005189611
TXT
묘사:
Terminal Board
INC
INC
아이템 이름 코드:
00404
INC
COM
컴플라이언스:
MRC:
The maximum voltage the insulating materials of the item will withstand without resulting in disruptive discharge or deterioration,expressed in volts.AAPB
Dielectric Withstanding Voltage In Volts:
1500.0
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Barrier type
MRC:
A measurement of the longest dimension of a mounting slot,in distinction from width.AAQW
Mounting Slot Length:
0.210 inches
MRC:
A measurement taken at right angles to the length of a mounting slot,in distinction from thickness.AAQX
Mounting Slot Width:
0.180 inches
MRC:
The number of terminal rows or terminal provisions included on the item.ABCS
Terminal Row Quantity:
2
MRC:
The center to center distance between terminals.ABCT
Center To Center Distance Between Terminals:
0.375 inches
MRC:
The distance between the terminal row centers.ABCU
Distance Between Terminal Row Centers:
0.500 inches
MRC:
The structural characteristic(s) of the board.ABCX
Board Construction:
Hollow construction without insulated strip
MRC:
None.ABDU
Center To Center Distance Between Mounting Facilities Parallel To Length:
4.250 inches
MRC:
None.ABDW
Distance From Bottom Edge Of Terminal Board To Center Of Mounting Hole:
0.438 inches
MRC:
None.ABDX
Distance From Left Edge Of Terminal Board To Center Of First Mounting Facility:
0.188 inches
MRC:
None.ABGN
Boardlength:
4.625 inches
MRC:
None.ABGP
Boardwidth:
0.875 inches
MRC:
None.ABGQ
Boardheight:
0.624 inches
MRC:
None.ABGR
Board Height Excluding Terminals:
0.500 inches
MRC:
None.ABGS
Base Thickness:
0.312 inches
MRC:
The electrical current rating,expressed in amperes.AMPS
Current Rating In Amps:
30.0
MRC:
Indicates the type and number of facilities by which the item is mounted.AXHR
Mounting Facility Type And Quantity:
2 slot
MRC:
The number of terminal connecting links furnished with the item.CQCZ
Terminal Connecting Link Quantity:
10 single
MRC:
Indicates the type of nonfeedthru terminal furnished with the item.CRNL
Nonfeedthru Terminal Type:
600 single
MRC:
Indicates the type of terminal connecting link/s/ furnished with the item.CSCR
Terminal Connecting Link Type:
1 single
MRC:
The number of nonfeedthru terminals furnished with the item.CSCS
Nonfeedthru Terminal Quantity:
10 single
MRC:
The arrangement of terminal positions on the item.CWLG
Terminal Pattern Arrangement:
Multi-row
MRC:
The design of the terminal.CWLN
Terminal Design:
Linked nonfeedthru
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 670 terminals
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyester board and glass fiber board
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-m-14, type mai-60 military specification single material response board
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-b728, class b federal specification single material response terminals
